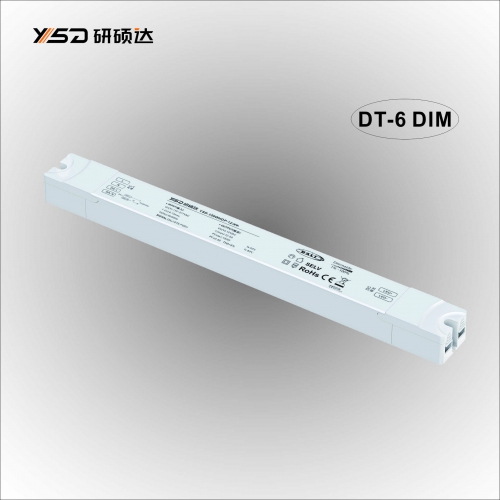

YSD-150W DALI DT6&PUSH&0-10V-DIM 3 in 1 LED Power Supply

Price: Negotiable

● PF test under AC 220V and full loading
● Item No：YSD-150WUDL-12D/24D
● Digital Addressable Lighting Interface，Flicker-Free，Continuous Smooth
● Conversion Efficiency：93%,PF>0.96，THD<6%
● Dimming range：0.1-100%
● Dimming interface：1.DALI DT6&PUSH&0-10V&Tric&PWM DIM
● Output voltage：12V,24V Constant Voltage
● Size：215*35*26mm
● Output current：12.5a/6.3a
● Output power range：0-150W
● Output Frequency：50-60Hz
● Material：Aluminum
● Waterproof grade：IP20
● Warranty period：5 years

INQUIRY

Description

Model（12V,24V）	specification	Power	Output current	Size（mm）	NG（g）	Each cases（pcs）
YSD-60UDP-12/24	yanshuoda IP20 DALI 2 in 1 Switching power supply Input： AC：100-277V DC： 12V,24V Ultrathin contact voltage Dimming way：DALI DT6&PUSH/DALI DT8&PUSH	60W	5A,2.5A	*3343020mm*	280g	45pcs
YSD-60UDP-12/24S		60W	5A,2.5A	*3343020mm*	280g	45pcs
YSD-100UDP-12/24		100W	8.3A，4.2A	*3343020mm*	300g	30pcs
YSD-100UDP-12/24S		100W	8.3A，4.2A	*3343020mm*	300g	30pcs
YSD-150UDP-12/24		150W	12.5A、6.25A	*3763424.5mm*	540g	30pcs
YSD-150UDP-12/24S		150W	12.5A、6.25A	*3763424.5mm*	540g	30pcs
YSD-200UDP-12/24		200W	16.7A、8.3A	*3763424.5mm*	540g	30pcs
YSD-200UDP-12/24S		200W	16.7A、8.3A	*3763424.5mm*	540g	30pcs
