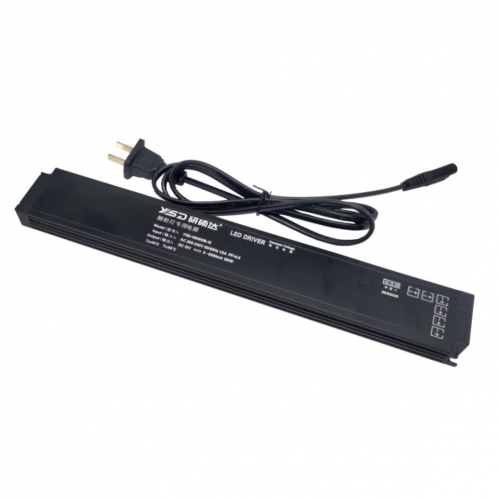

12/24V 100W cabinet-power-suppy

Price: Negotiable

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage:175-264Vac or 100-130Vac
● Output voltage:12V，24V
● Output current:8.3a/4.16a
● Output power range:100w
● Output Frequency:50-60Hz
● Power factor:PF>0.6/230Vac,at full load
● Efficiency:86%
● Certificates:CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP20
● Production Place:Shenzhen，CN
● Warranty period:5 years

INQUIRY

Description

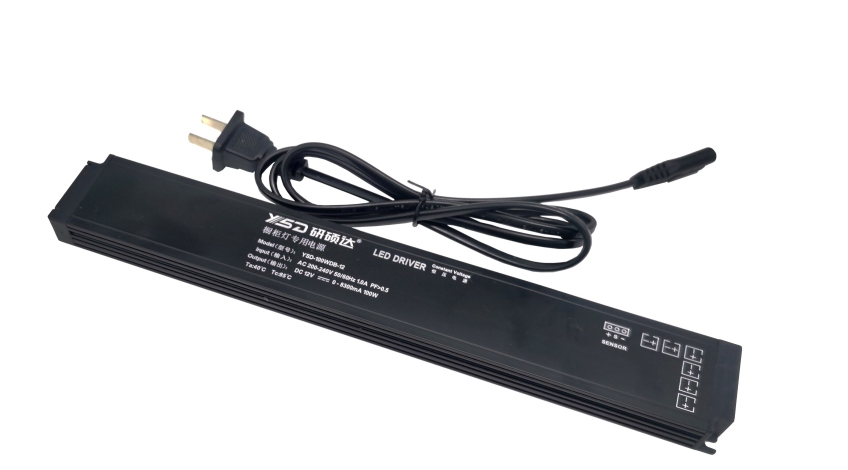

Small size LED Driver 12V 100W 8.3A 4.16A BIS Constant Voltage Indoor Switch Driver cabinet-power-suppy

Quick Details

Lighting solutions service:	Lighting and circuitry design,Project Installation
Range of application:	LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:	YSD-300WUCP-12TL/YSD-300WUCP-24TL
Product Name:	Led Driver(Switching Power Supply)
Size:	28341.515mm
Weight:	190g
Color:	Black
Supply Ability:	5000 Case Cases per Day
Fast delivery:	sample within 1-2 days,wholesales 3-7 days，OEM 7-10 days
Shipping:	DHL·UPS·TNT·EMS·International Airmail
Support Express:	Sea freight·Land freight·Air freight
Payment:	PayPal·HSBC·Western Union

*Soft and smooth,flicker-free,jitter free;a variety of dimming,simultaneous control,no interference

●Multiple protection circuit: short circuit, over current, over voltage, over temperature

●Interior installation design

●Natural air cooling

●Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ

●Widely used in LED cabinet lighting equipment

●Compliance to worldwide safety regulation for led lightings

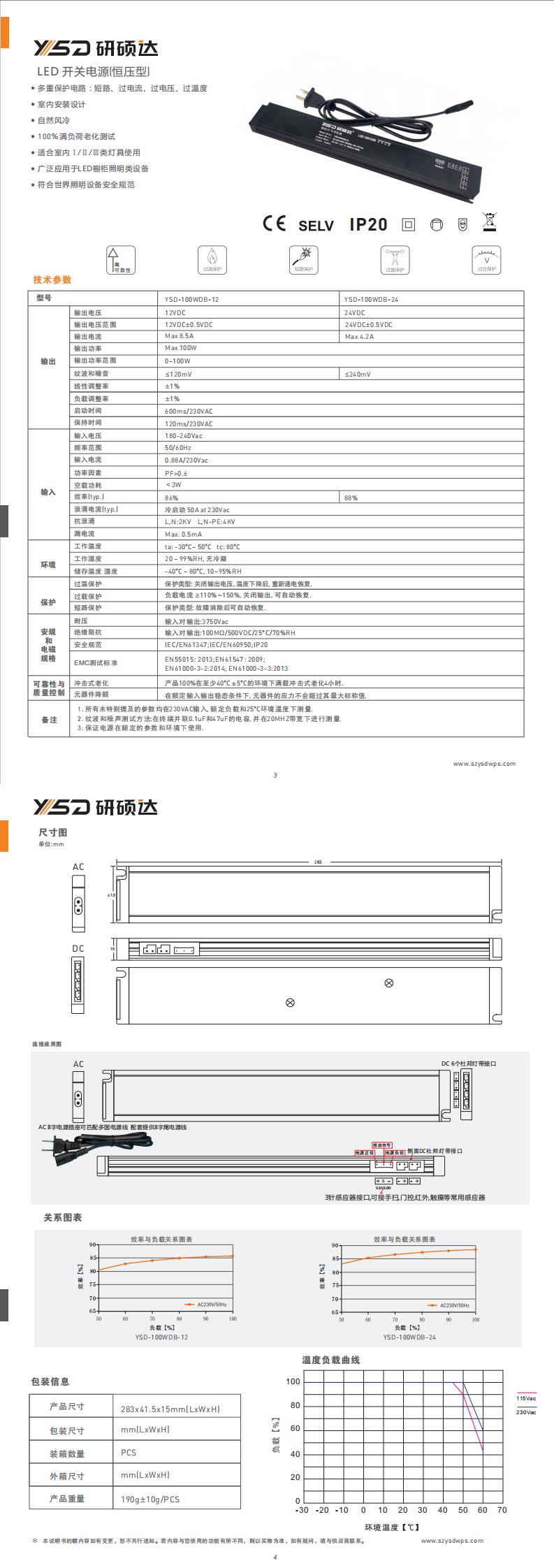

Small size LED Driver 12V 100W 8.3A 4.16A BIS Constant Voltage Indoor Switch Driver cabinet-power-suppy specification 01
