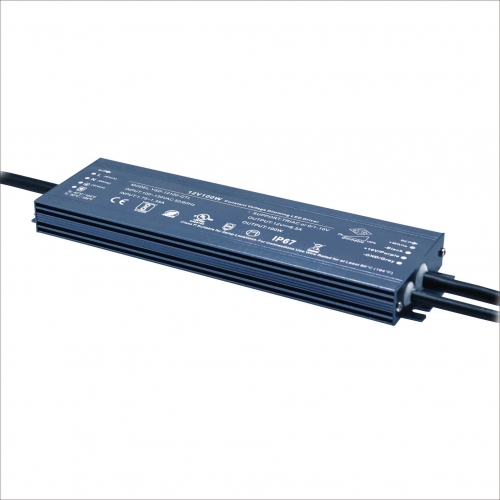

100W 12V/24V CV dimmable waterproof LED power supply

Price: Negotiable

● Brand Name:YSD
● Input voltage：175-264Vac or 100-130Vac
● Output voltage：12V，24V
● Output current:8.5a/4.2a
● Output power range：60w 80w 100w
● Output Frequency:50-60Hz
● Power factor：PF>0.55/230Vac,at full load
● Efficiency：92%
● Dimming interface：triac/0-10V/1-10V/10V PWM/resistance DIM
● Dimming range：0~100%，dimming depth：Max.1%
● Certificates：CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP67
● Production Place:Shenzhen，CN
● Warranty period：3 years

INQUIRY

Description

BIS CE RoHS SAA Ultra thin power supply 24V 100W 4.17 A 0-10V triac led driverdimmable switch IP67 outdoor led waterproof power

Quick Details

Lighting solutions service:	Lighting and circuitry design,Project Installation
Range of application:	LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:	YSD-100WUGF-12TL/YSD-100WUGF-24TL
Product Name:	Led Driver(Switching Power Supply)
Size:	1786218.5mm
Weight:	465g
Color:	Coffee
Supply Ability:	5000 Case Cases per Day
Fast delivery:	sample within 1-2 days,wholesales 3-7 days，OEM 7-10 days
Shipping:	DHL·UPS·TNT·EMS·International Airmail
Support Express:	Sea freight·Land freight·Air freight
Payment:	PayPal·HSBC·Western Union

*YSD 5 in 1 Dimmable series products can match with manydimmers, high compatibility and continuous smooth & flicker-free with dimmers（Leading edge（Triac），Trailing edge（ELV）phase-cut

● With soft-on and fade in function, visual more comfortable

● 0-100% flicker-free, High frequency exemption level

● Over load / Over temp. / Short circuit / Over voltage protection, recover automatically

● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ

● Up to 50000-hour life time
