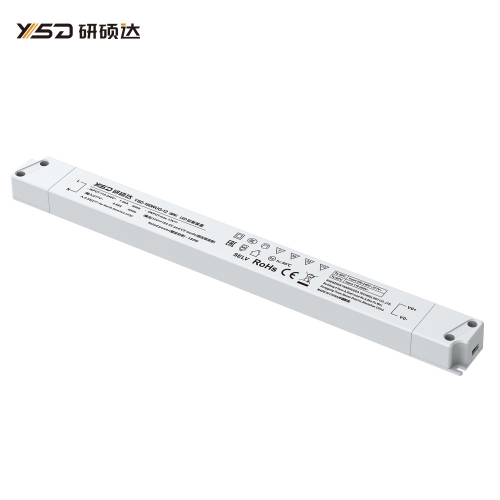

180W 12V/24V CV semi filled glue linear LED power supply

Price: Negotiable

● PF test under AC 220V and full loading
● Brand Name:YSD
● AC:100-277V
● Output voltage：12V，24V
● Output current:15a/7.5a
● Output power range：60w 100w 150w 180w
● Output Frequency:50-60Hz
● High PFC>0.95
● THD<10%
● Conversion Efficiency:93.5%
● Thickness only:18mm
● Certificates：CE,CB,TUV,SAA,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP40
● Warranty period：5 years
● Production Place:Shenzhen，CN
● Built in Short circuit protection，Over-voltage protection，Overload protection，Over-temperature protection.EMC (Anti-interference.Anti-radiation)

INQUIRY

Description

Newest 100-277V AC High PF 12V 180w power supply switching constant voltage IP40 LED power supply 5 years warranty

Quick Details

Lighting solutions service:	Lighting and circuitry design,Project Installation
Range of application:	LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:	YSD-180WUG-12/YSD-180WUG-24
Product Name:	Led Driver(Switching Power Supply)
Size:	3563222.5mm
Weight:	500g
Color:	White
Supply Ability:	5000 Case Cases per Day
Fast delivery:	sample within 1-2 days,wholesales 3-7 days，OEM 7-10 days
Shipping:	DHL·UPS·TNT·EMS·International Airmail
Support Express:	Sea freight·Land freight·Air freight
Payment:	PayPal·HSBC·Western Union

*YSD linear led power supply is the best solution for advertising sign、led ligh-box and led installation of special or narrow space.
