200W 12V/24V CV high-end dimmable switch LED power supply

Price: Negotiable

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage：100-277Vac
● Output voltage：12V，24V
● Output current:16.7a/8.3a
● Output power range：60w 100w 200w
● Output Frequency:50-60Hz
● Power factor：PF>0.95/230Vac,at full load
● Efficiency：94%
● Dimming interface：triac/0-10V/1-10V/10V PWM/resistance DIM
● Dimming range：0~100%，dimming depth：Max.1%
● Certificates：CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP40
● Production Place:Shenzhen，CN
● Warranty period：5 years

INQUIRY

Description

200W Triac 0-10V Dimmable LED Driver 16.7a LED Transformer Constant Voltage 12V 8.3a Dimming Power Supply

Quick Details

Lighting solutions service:	Lighting and circuitry design,Project Installation
Range of application:	LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:	YSD-200WUGP-12TL/YSD-200WUGP-24TL
Product Name:	Led Driver(Switching Power Supply)
Size:	2456024mm
Weight:	750g
Color:	White
Supply Ability:	5000 Case Cases per Day
Fast delivery:	sample within 1-2 days,wholesales 3-7 days，OEM 7-10 days
Shipping:	DHL·UPS·TNT·EMS·International Airmail
Support Express:	Sea freight·Land freight·Air freight
Payment:	PayPal·HSBC·Western Union

*YSD 5 in 1 Dimmable series products can match with manydimmers, high compatibility and continuous smooth & flicker-free with dimmers（Leading edge（Triac），Trailing edge（ELV）phase-cut）

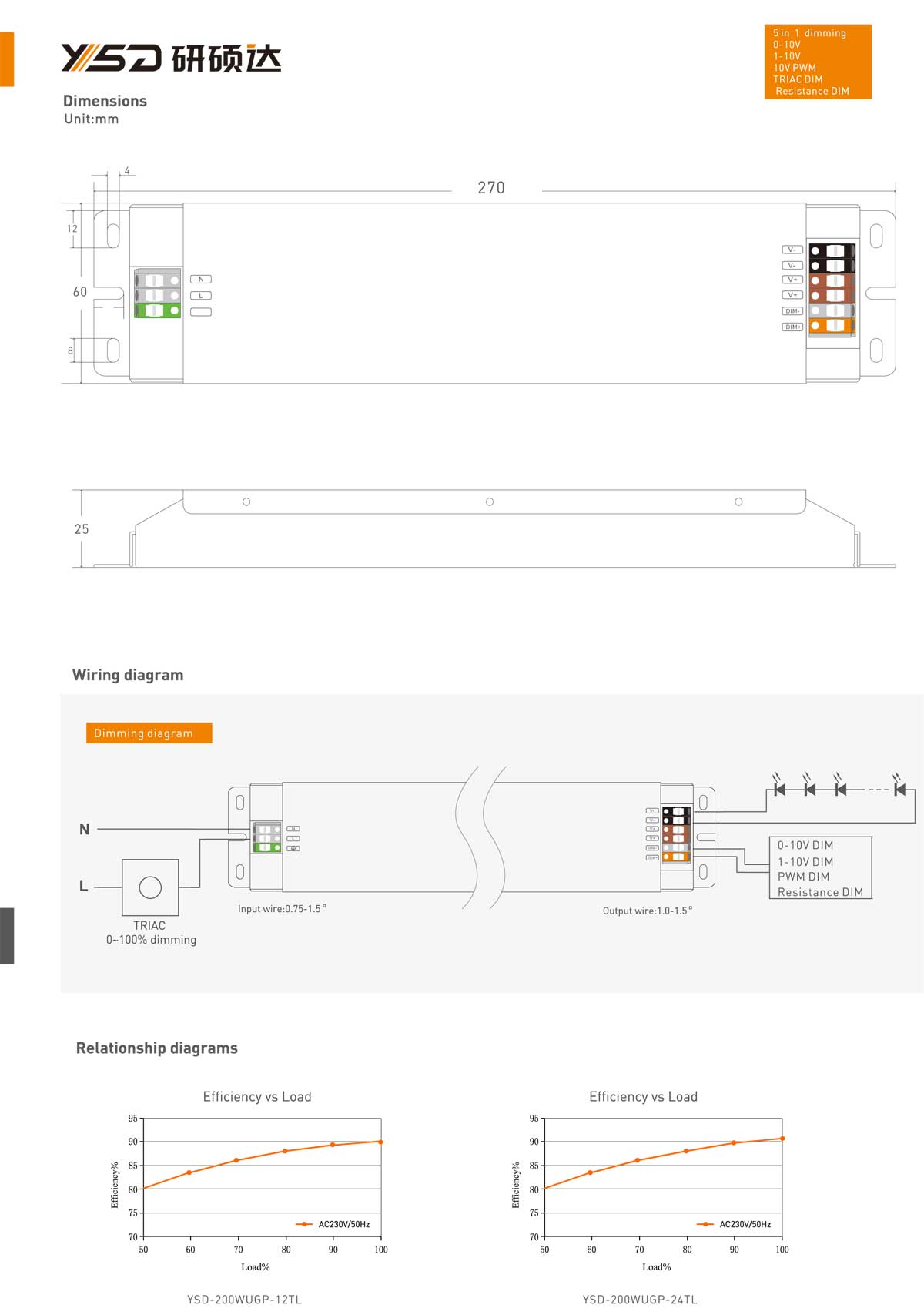

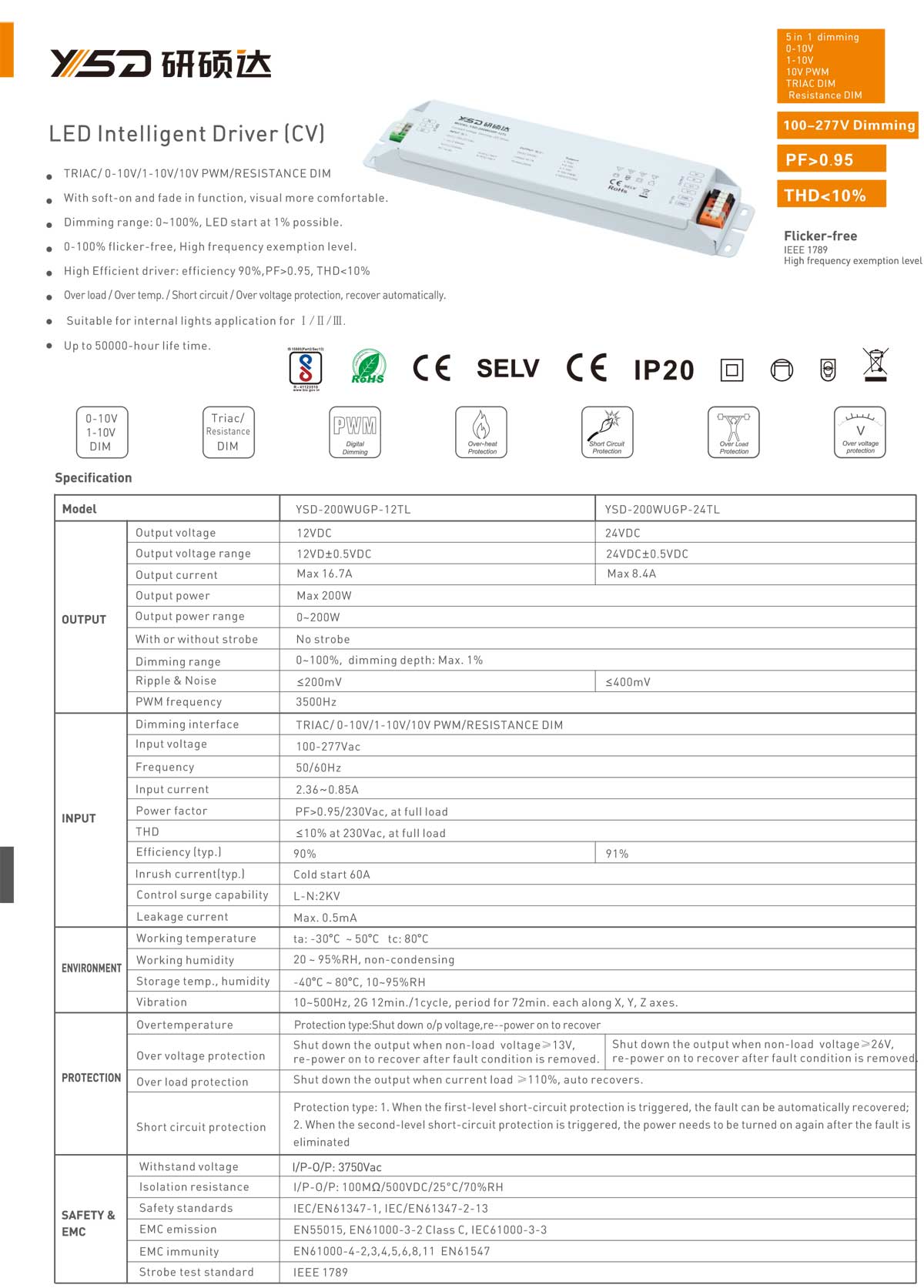

200W Triac 0-10V Dimmable LED Driver 16.7a LED Transformer Constant Voltage 12V 8.3a Dimming Power Supply specification 01
