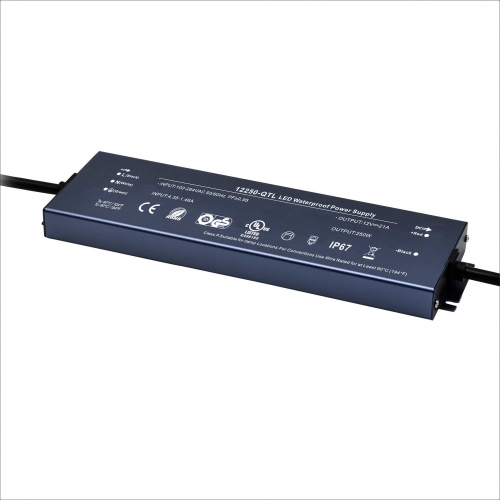

250W 12V/24V CV ultra-thin waterproof LED power supply YSD

Price: Negotiable

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage：100-277V
● Output voltage：12V，24V
● Output current：21a/10.4a
● Output power range：10w 20w 30w 40w 50w 60w 100w 150w 200w 250w
● Output Type:Single
● Output Frequency:50-60Hz
● Power factor：PF>0.95/230Vac,at full load.PF>0.98/115Vac,at full load
● Efficiency：93%
● Certificates：CE,CB,TUV,SAA,BIS,ROHS,CCC,UL
● Material：Aluminum
● Waterproof grade:IP67
● Warranty period：5 years
● Production Place:Shenzhen，CN

INQUIRY

Description

Newest LED driver constant voltage ulrta slim 12v 24v 250w ip67 led driver power supply with EMC EMI UL TUV

Quick Details

Lighting solutions service:	Lighting and circuitry design,Project Installation
Range of application:	LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:	YSD-250WUD-12/YSD-250WUD-24
Product Name:	Waterproof Led Driver
Size:	2426722.8mm
Weight:	780g
Color:	Coffee
Supply Ability:	5000 Case Cases per Day
Fast delivery:	sample within 1-2 days,wholesales 3-7 days，OEM 7-10 days
Shipping:	DHL·UPS·TNT·EMS·International Airmail
Support Express:	Sea freight·Land freight·Air freight
Payment:	PayPal·HSBC·Western Union

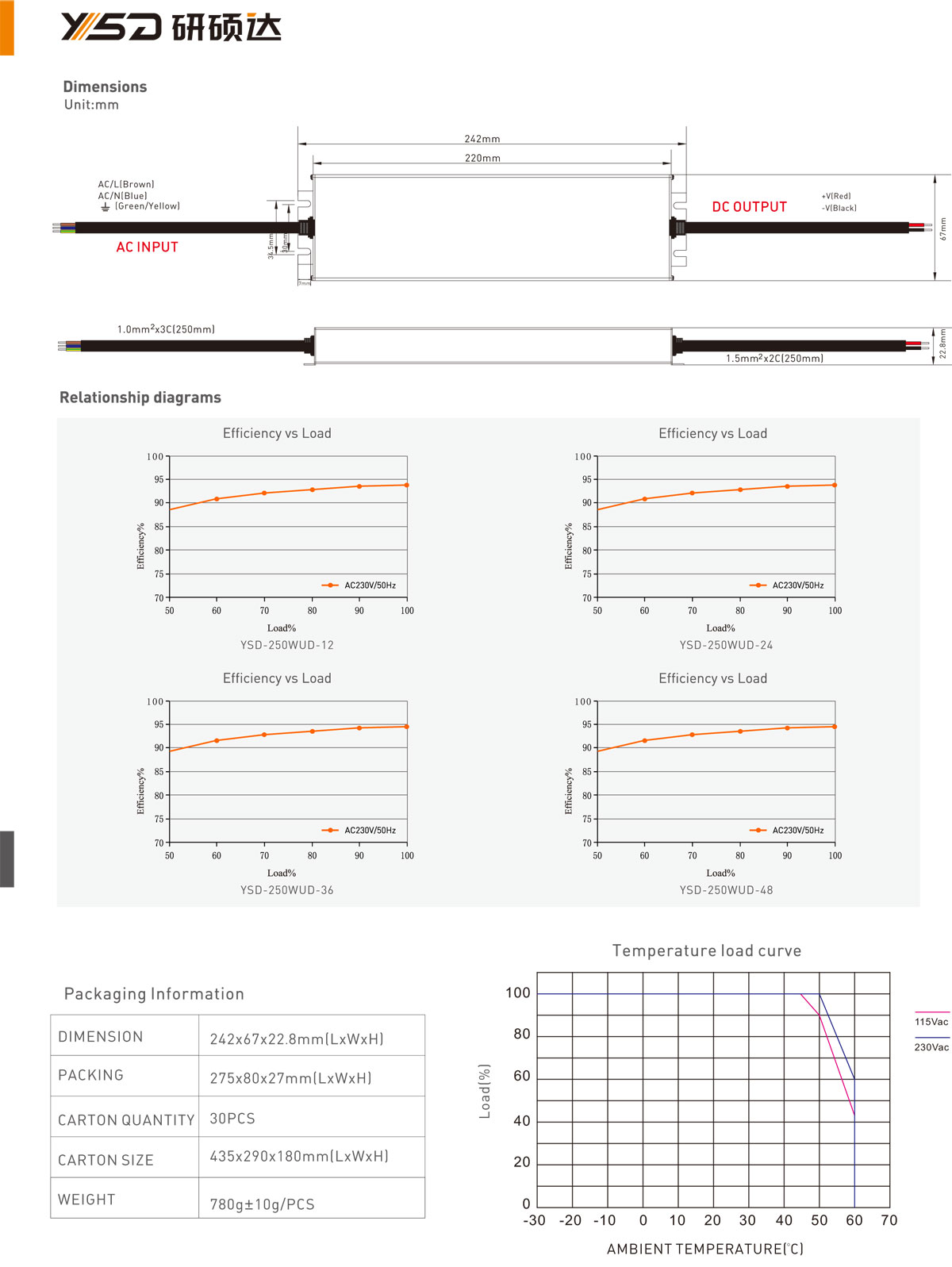

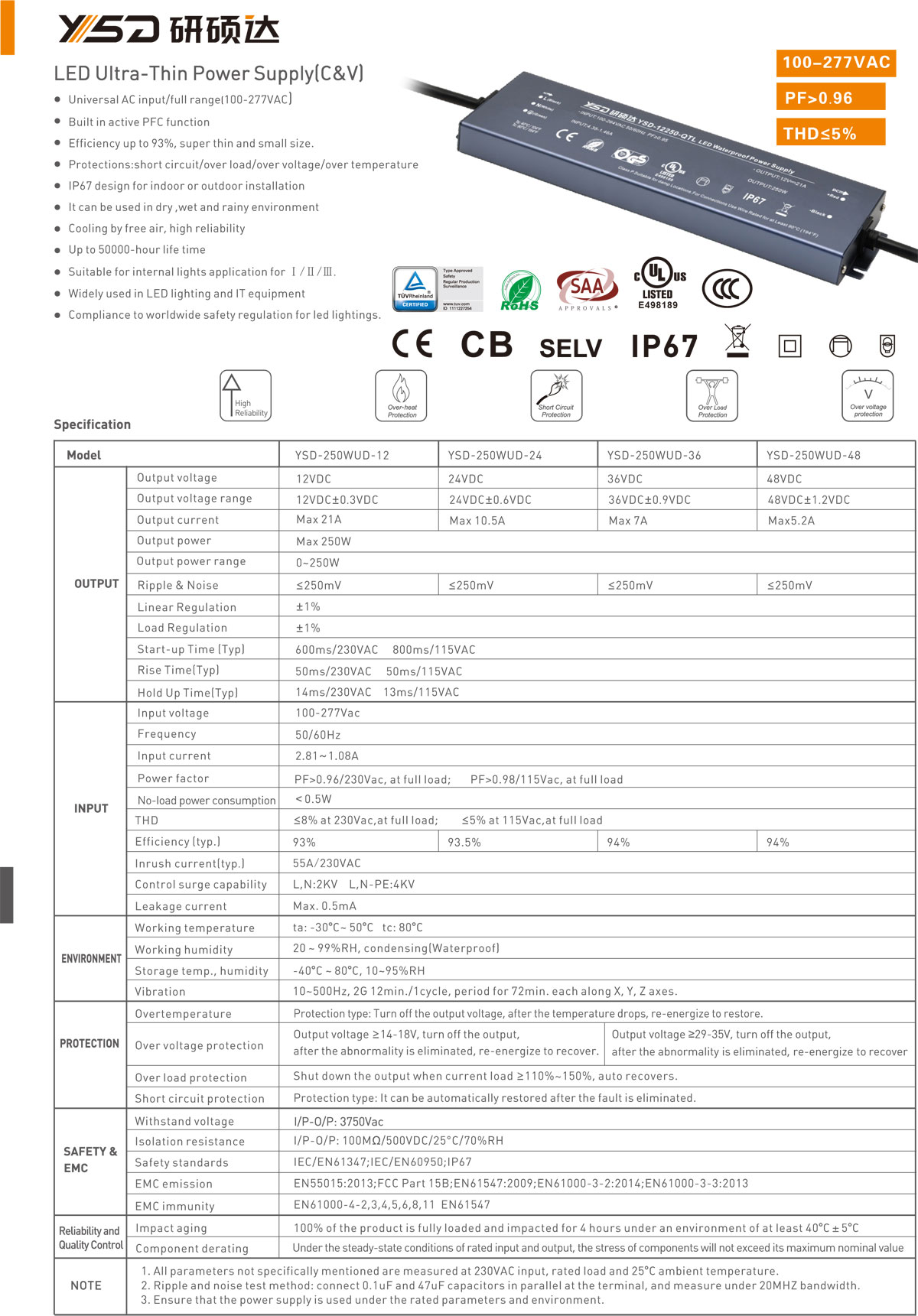

Newest LED driver constant voltage ulrta slim 12v 24v 250w ip67 led driver power supply with EMC EMI UL TUV specification 01
