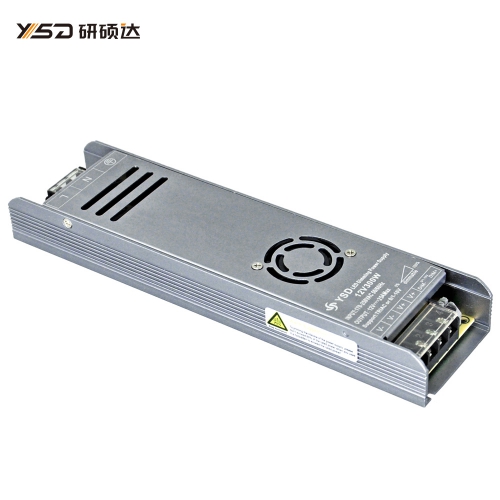

300W 12V/24V CV dimmable Switch LED power supply

Price: Negotiable

● PF test under AC 220V and full loading
● Brand Name:YSD
● Input voltage：175-264Vac or 100-130Vac
● Output voltage：12V，24V
● Output current:25a/12.5a
● Output power range：60w 100w 150w 200w 250w 300w
● Output Frequency:50-60Hz
● Power factor：PF>0.6/230Vac,at full load
● Efficiency：86%
● Dimming interface：triac/0-10V/1-10V/10V PWM
● Dimming range：0~100%，dimming depth：Max.1%
● Certificates：CE,BIS,ROHS
● Material:Aluminum
● Waterproof grade:IP20
● Production Place:Shenzhen，CN
● Warranty period：3 years

INQUIRY

Description

Slim Driver 12V/24V 300W Constant Voltage LED Power Supply IP20 Ultra Thin Indoor Switch Driver TRIAC+0-10V dimmable driver

Quick Details

Lighting solutions service:	Lighting and circuitry design,Project Installation
Range of application:	LED strip lights,Fog-proof lights,Downlights,Grille lights,Track lights,Ceiling lights
Model Number:	YSD-300WUCP-12TL/YSD-300WUCP-24TL
Product Name:	Led Driver(Switching Power Supply)
Size:	2456429mm
Weight:	420g
Color:	Coffee
Supply Ability:	5000 Case Cases per Day
Fast delivery:	sample within 1-2 days,wholesales 3-7 days，OEM 7-10 days
Shipping:	DHL·UPS·TNT·EMS·International Airmail
Support Express:	Sea freight·Land freight·Air freight
Payment:	PayPal·HSBC·Western Union

*Soft and smooth,flicker-free,jitter free;a variety of dimming,simultaneous control,no interference

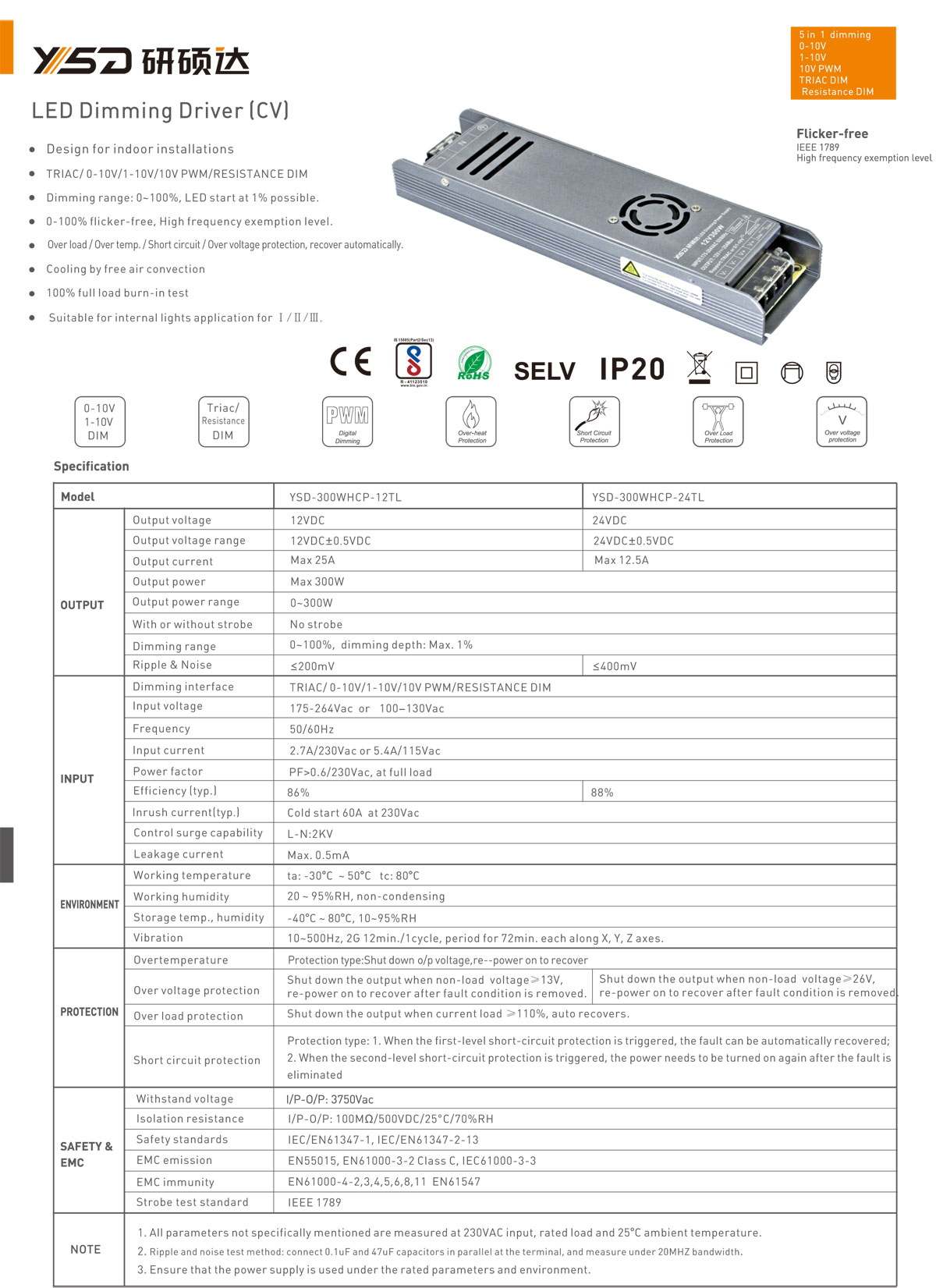

Slim Driver 12V/24V 300W Constant Voltage LED Power Supply IP20 Ultra Thin Indoor Switch Driver TRIAC+0-10V dimmable driver specification 01
