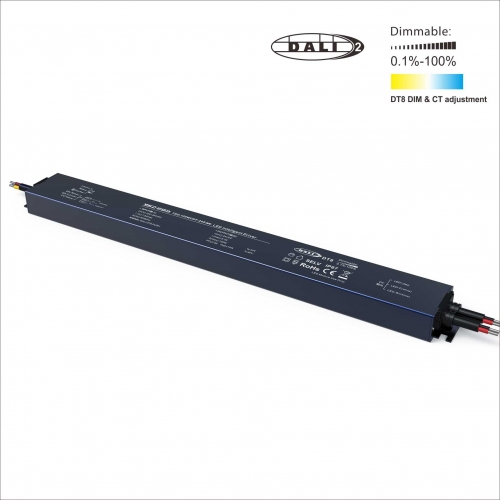

YSD-150W DALI DT8&PUSH&0-10V-DIM 3 in 1 Waterproof LED Power Supply

Price: Negotiable

● Item No：YSD-150WUDF-12S/24S
● PF test under AC 220V and full loading
● Brand Name：YSD
● Dimmer way：DALI DT8&PUSH&0-10V&Tric&PWM DIM
● Dimming range：0.1-100%，DALI DT8 adjust different color temperature to keep the same brightnees
● Input voltage：100-277Vac
● Output voltage：12V，24V
● Output current：12.5a/6.3a
● Output power range：150w
● Output Frequency：50-60Hz
● Power factor：PF>0.96/230Vac,at full load
● Efficiency：93%
● Material：Aluminum
● Size：237*42*23.8mm
● Waterproof grade：IP67
● Warranty period：5 years

INQUIRY

Description

Model（12V,24V）	specification	Power	Output current	Size（mm）	NG（g）	Each cases（pcs）
YSD-60UDF-12/24	yanshuoda IP67 DALI 2 in 1 Waterproof power supply AC：100-277V DC：12V,24V Ultrathin contact voltage Dimming way：DALI DT6&PUSH/DALI DT8&PUSH	60W	5A,2.5A	*3253620mm*	360g	45pcs
YSD-60UDF-12/24S		60W	5A,2.5A	*3253620mm*	380g	45pcs
YSD-100UDF-12/24		100W	8.3A，4.2A	*3253620mm*	360g	30pcs
YSD-100UDF-12/24S		100W	8.3A，4.2A	*3253620mm*	380g	30pcs
YSD-150UDF-12/24		150W	12.5A、6.25A	*3603621.5mm*	620g	30pcs
YSD-150UDF-12/24S		150W	12.5A、6.25A	*3603621.5mm*	650g	30pcs
YSD-200UDF-12/24		200W	16.7A、8.3A	*3603621.5mm*	620g	30pcs
YSD-200UDF-12/24S		200W	16.7A、8.3A	*3603621.5mm*	650g	30pcs
